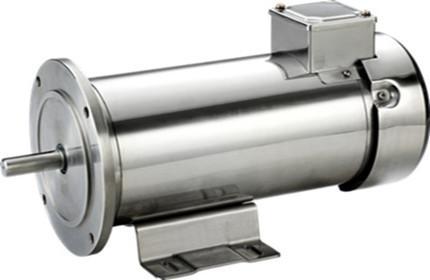

Stainless Steel

Specification

NEMA56C 90V & 180V

Power 1/4HP to 1HP

1750 RPM,TEFC or TENV

Enquiry Now

Stainless Steel Details

All exterior components are 300-series stainless steel.
Nothing on the exterior of the motor is painted or coated in any way.
All sealing components are Viton for superior chemical resistance.
Full fact nameplate is laser etched on the motor frame, no separately attached nameplate to trap dirt or contaminants.
Endshields are O-ring sealed to the frame.
Double lip shaft seals on both ends of TEFC Motors (shaft end only on TENV motors).
Removable hydrophobic breathers in opposite shaft endbell and conduit box equalize pressure without allowing moisture to enter.
Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life.
Interior coatings applied to armature and frame/magnet assemble protect against corrosion.
Easy to clean construction is BISSC Certified for bakery applications.

Stainless Steel 1HP DC MOTOR
